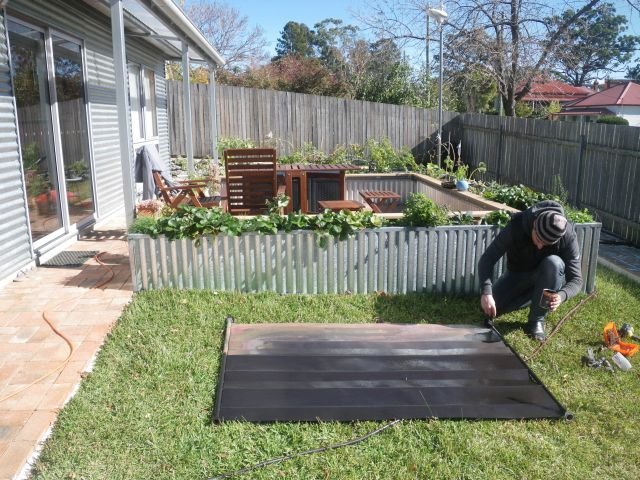

: Wadan painting the copper collector panel black

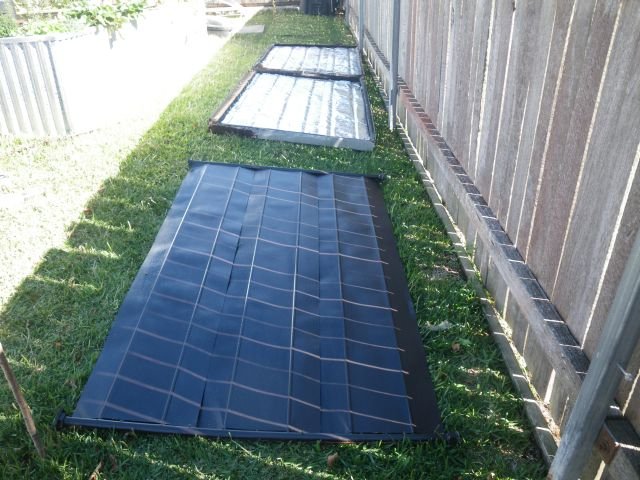

: Black collector panel in front of two flat-plate collector metal boxes

: Cleaning the glass

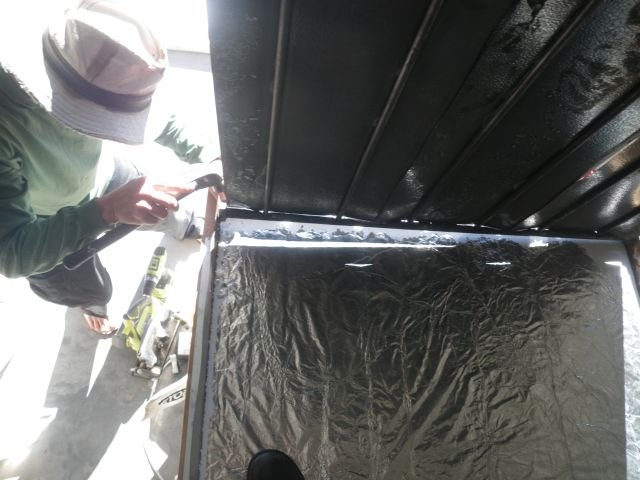

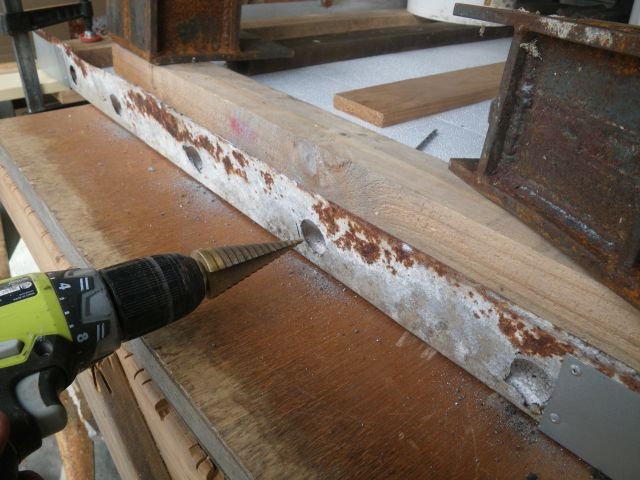

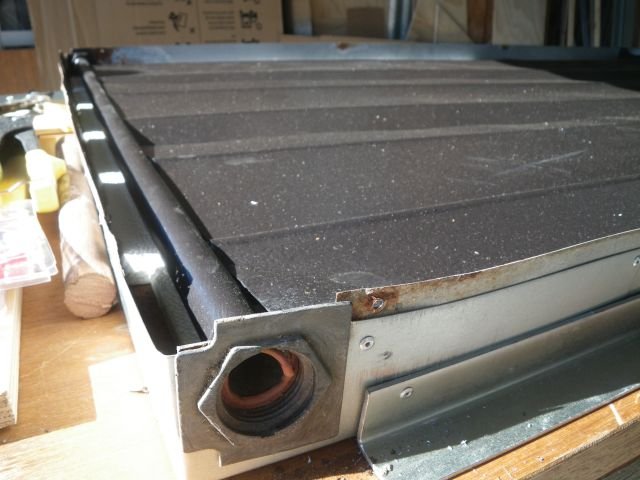

: Removing the old fibreglass insulation from the panel box

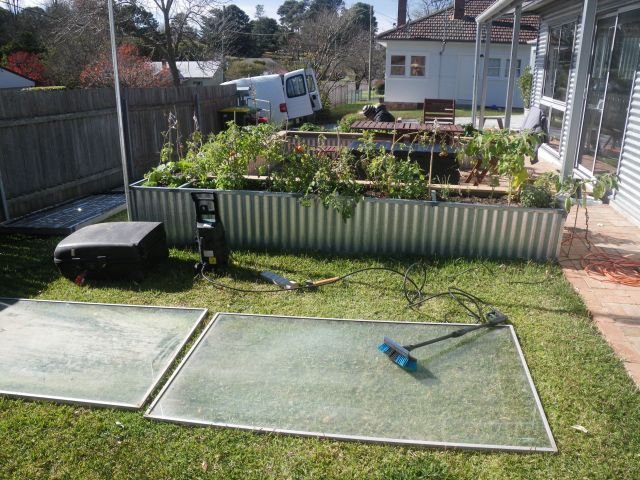

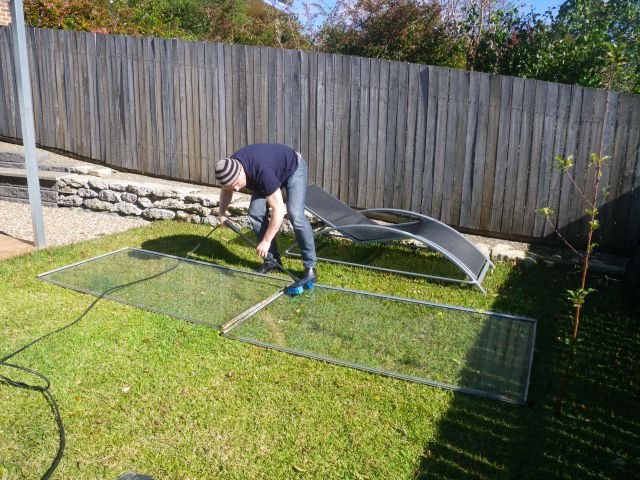

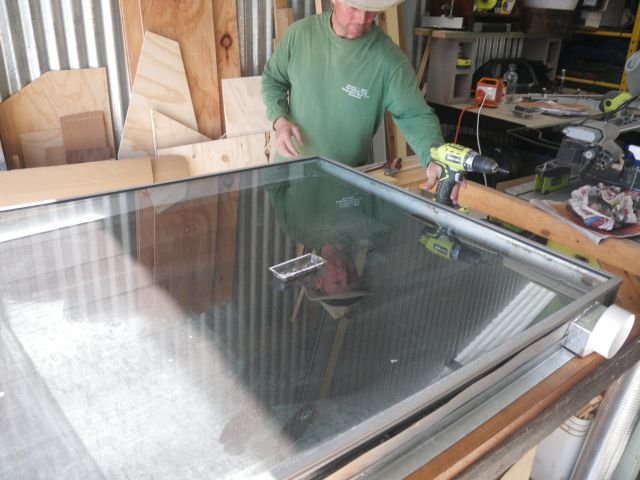

: Wadan cleaning the glass faces

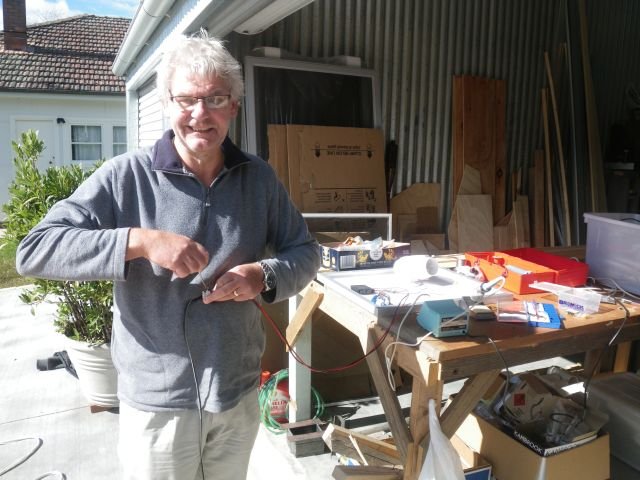

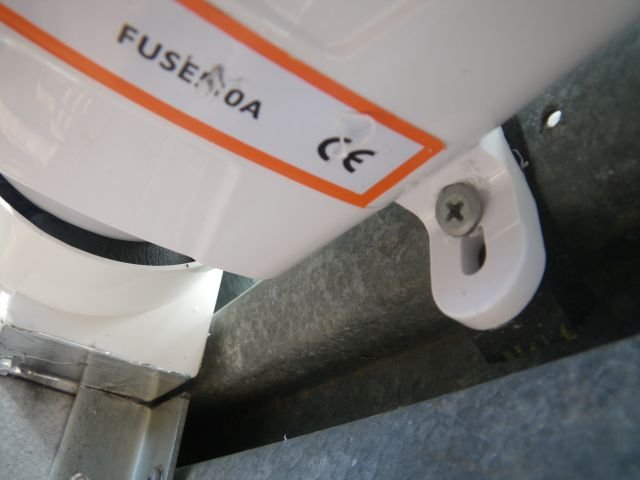

: Ben wiring the solar panel and fan

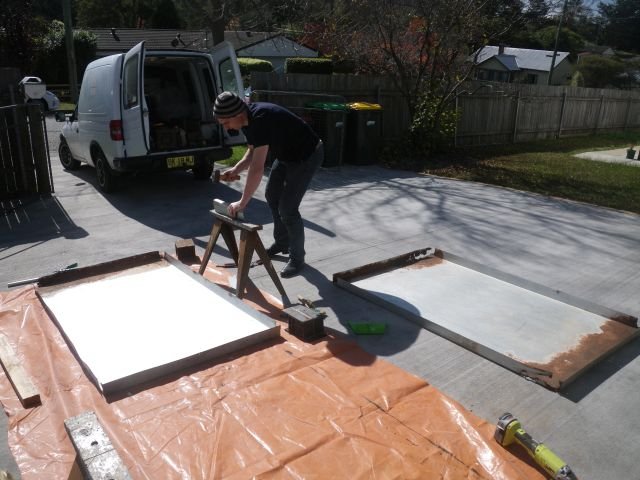

: Wadan repairing the corroded panel boxes

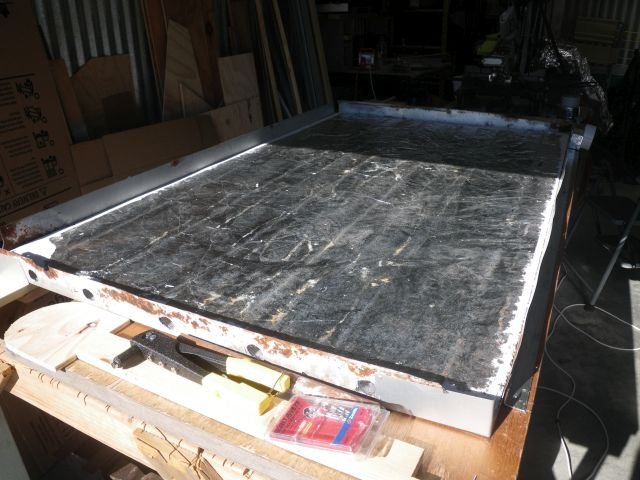

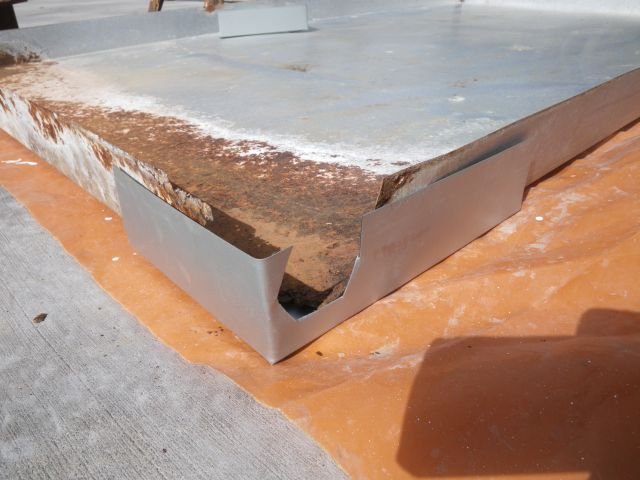

: Repairs to corroded parts of the panel box

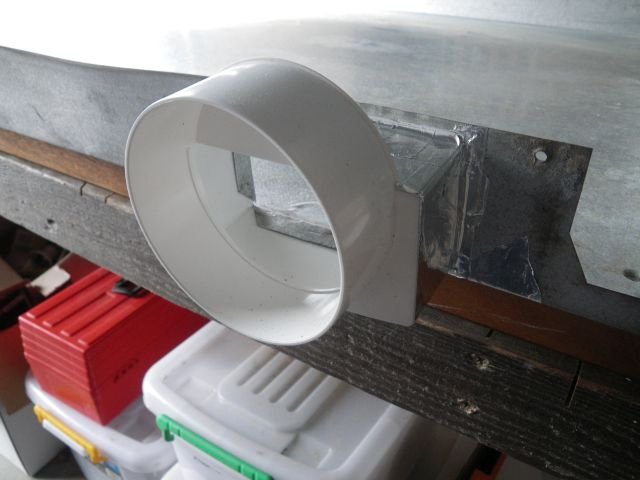

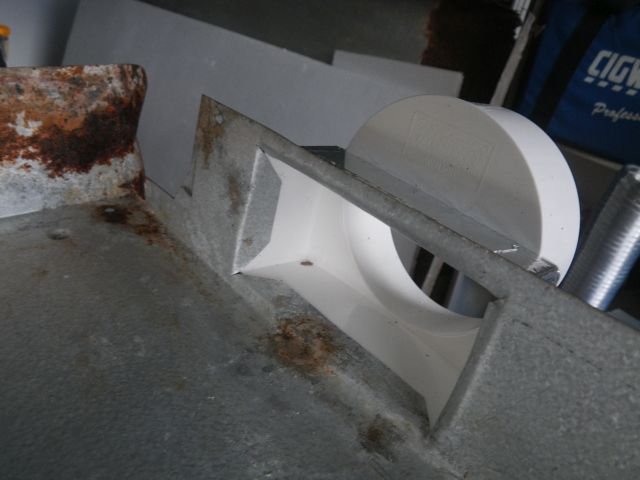

: Installing the air outlet adaptor (actually a downpipe adaptor)

: Cutting the outlet hole and installing the outlet adaptor

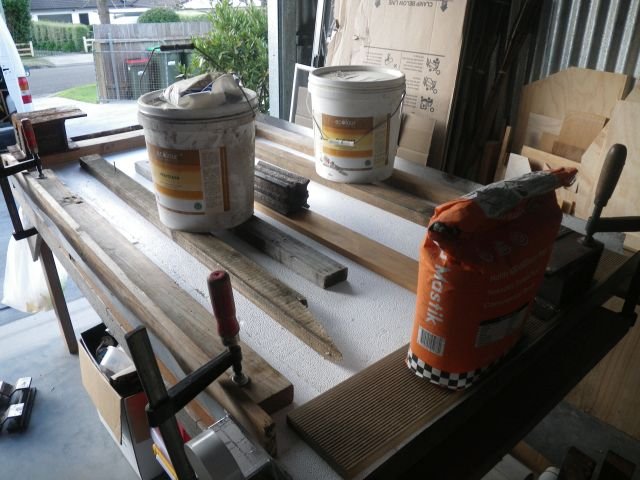

: Glueing styrofoam insulation to back of panel

: Drilling the air intake holes in the bottom of the panel

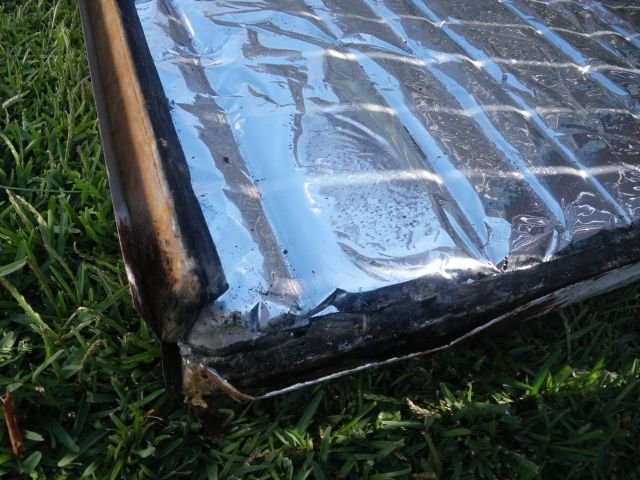

: Glueing the old aluminium foil back onto the face of the styrofoam insulation

: Reinstalling the copper collector panel

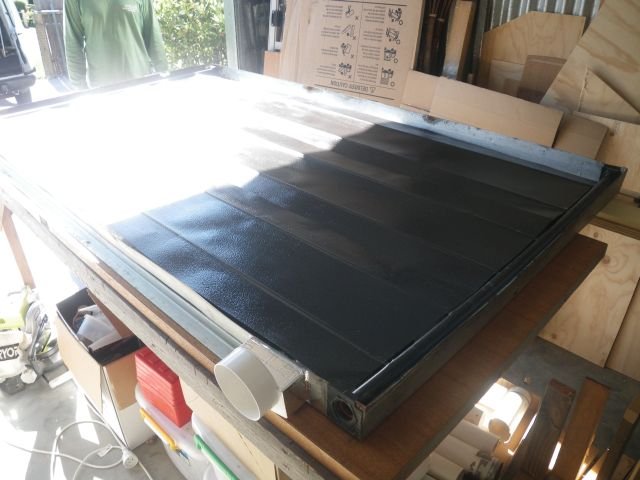

: Copper collector panel painted black and back in the panel box

: Copper collector plate back in the panel box

: Reinstalling the glass

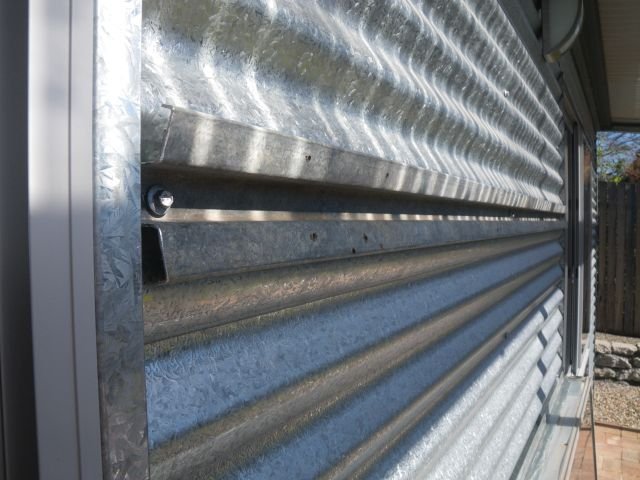

: Installing the mounting rail using the existing screws in the corrugated cladding

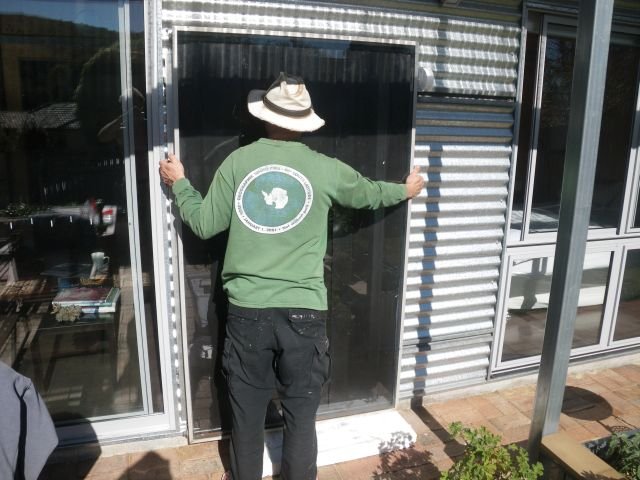

: George installing the collector panel on the wall of the Greeny Flat

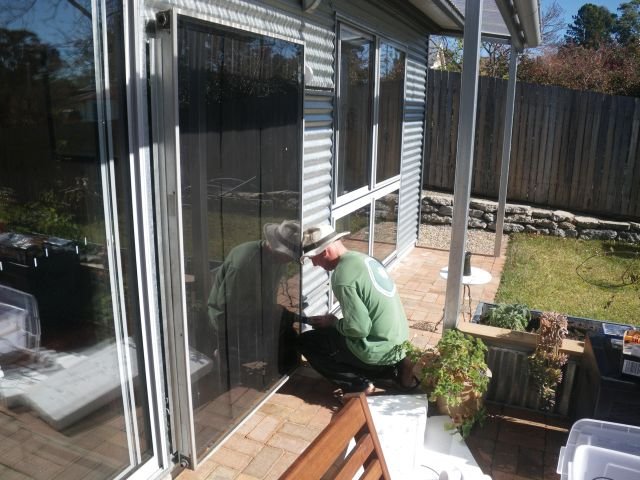

: George installing the collector panel

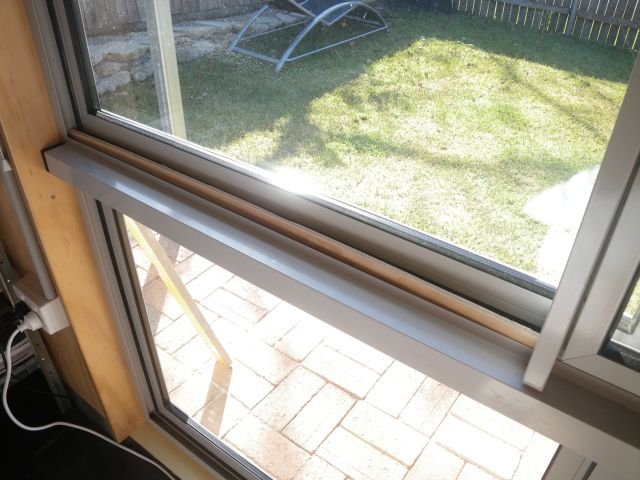

: George installing the plywood spacer in the sliding window

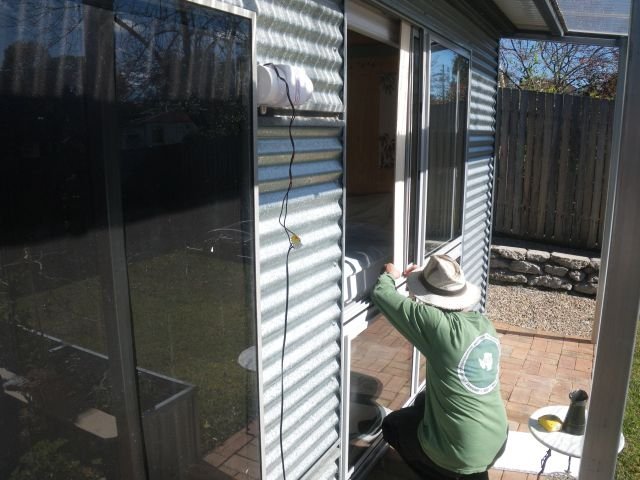

: Nearly there, just the ducting to hook up.

: George giving it the manual test

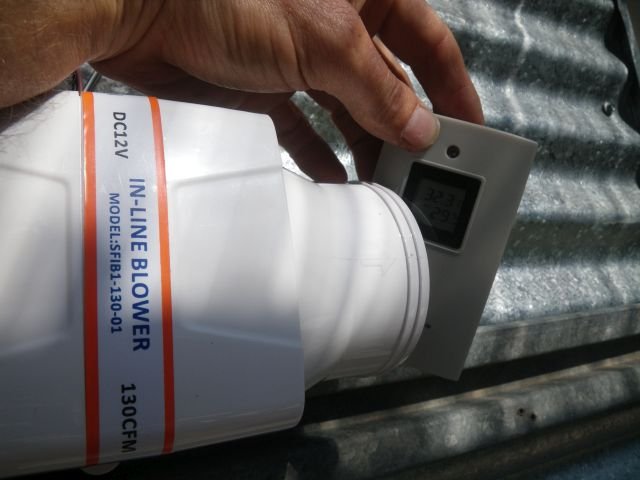

: Testing the output temperature

: Black foam used to try to damped the noise of the noisy fan

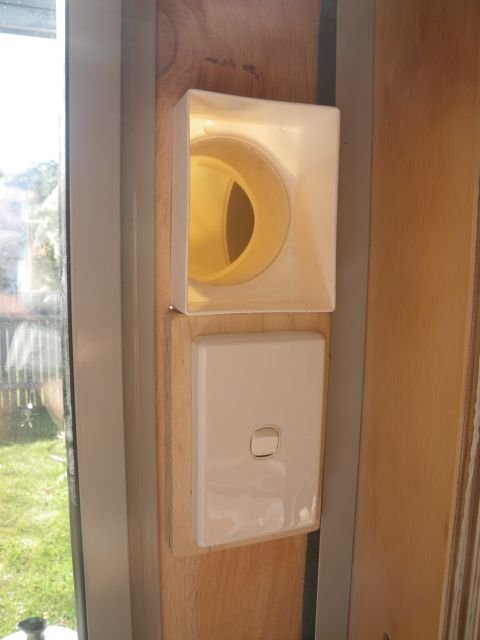

: Plywood spacer placed in the sliding window with switch and air intake.

: Plywood block to ‘lock’ window

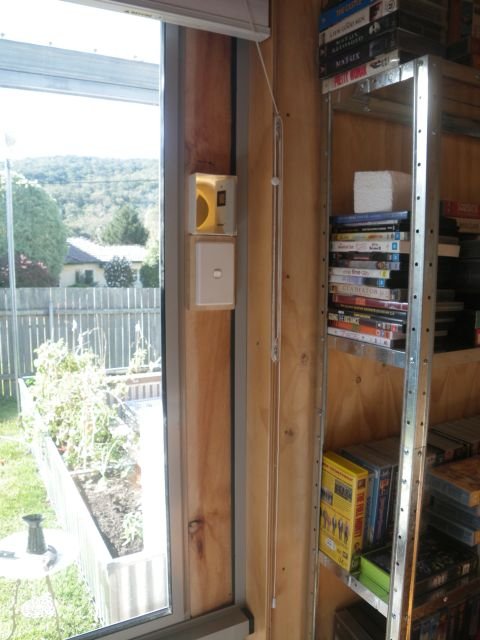

: Air intake and switch

: Indoor and outdoor temperature and humidity

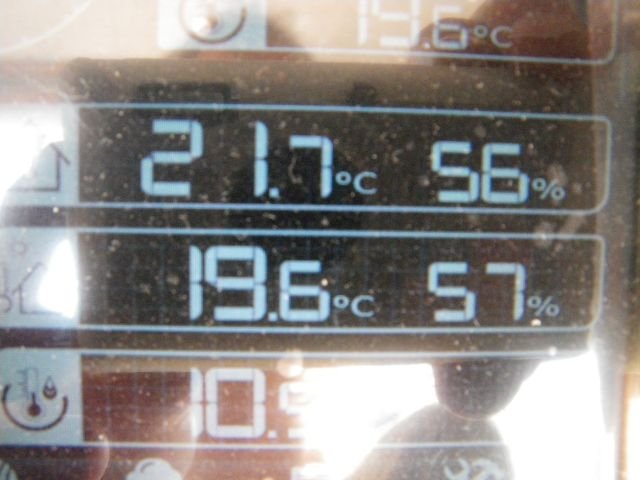

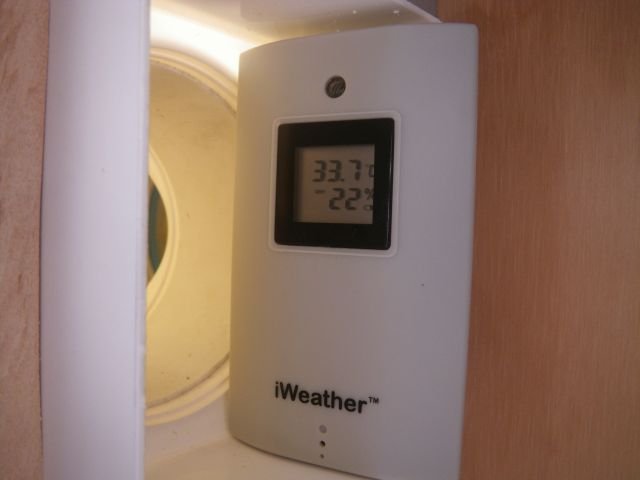

: Incoming air temperature and humidity

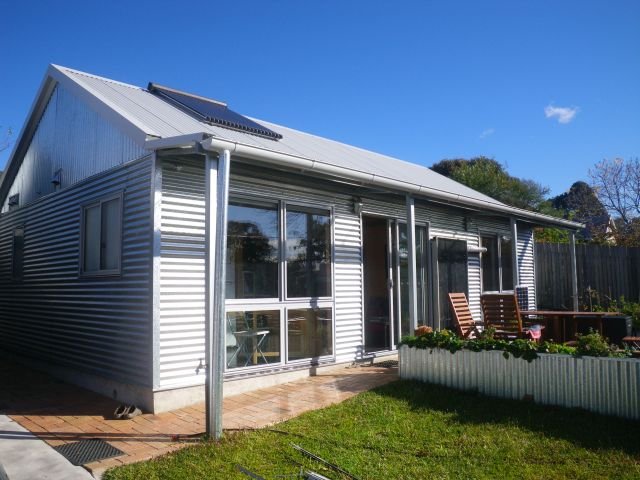

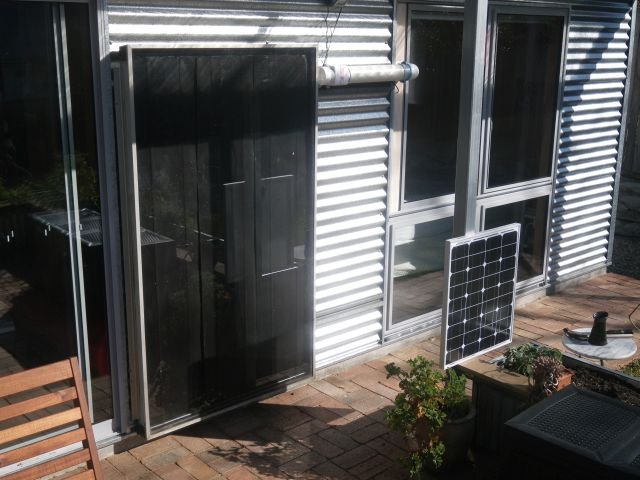

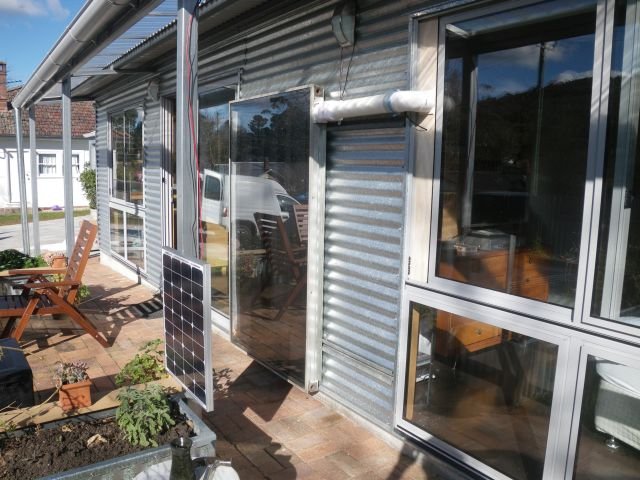

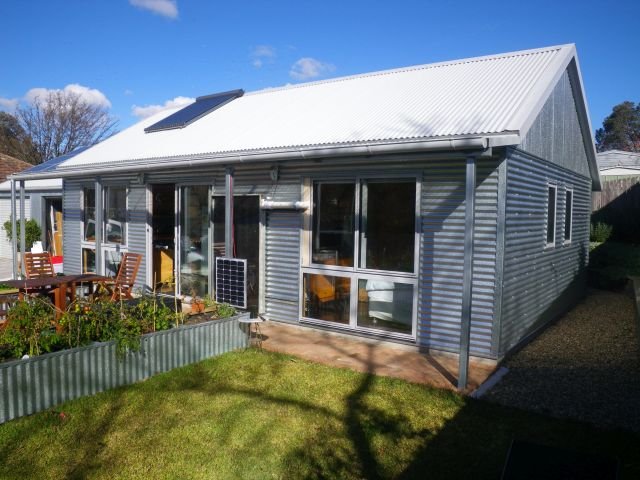

: Finished prototype

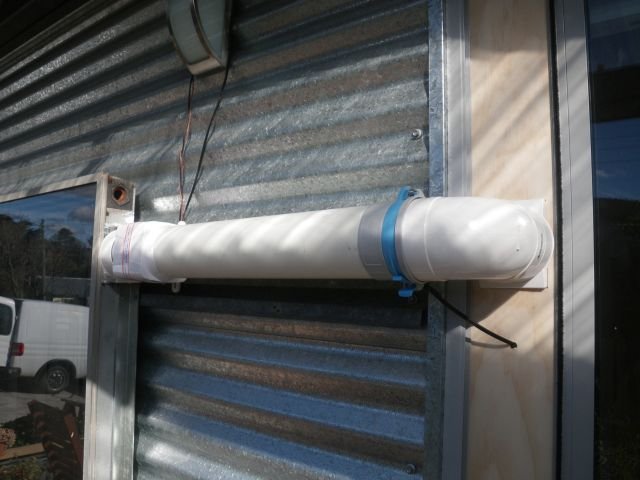

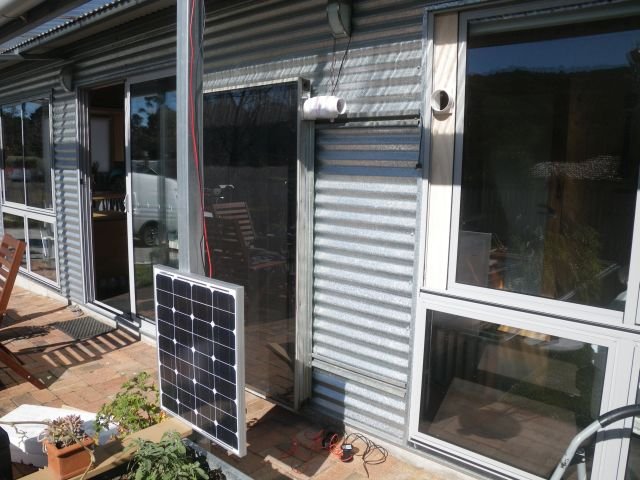

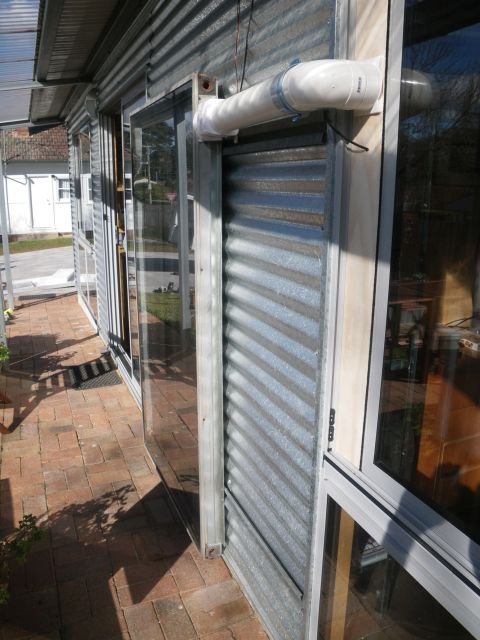

: Finished ducting and fan

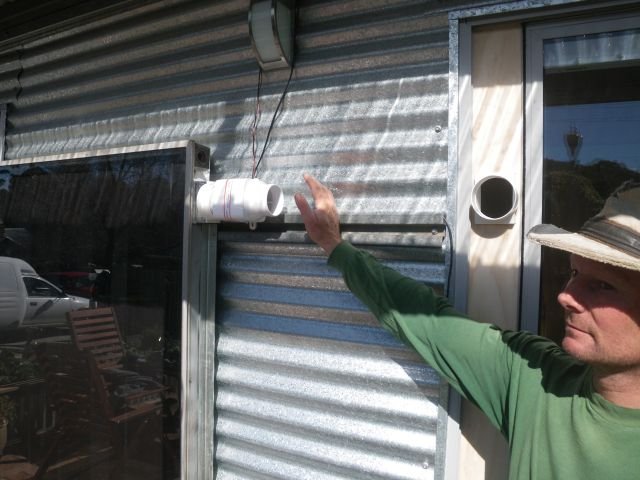

: Finished prototype
